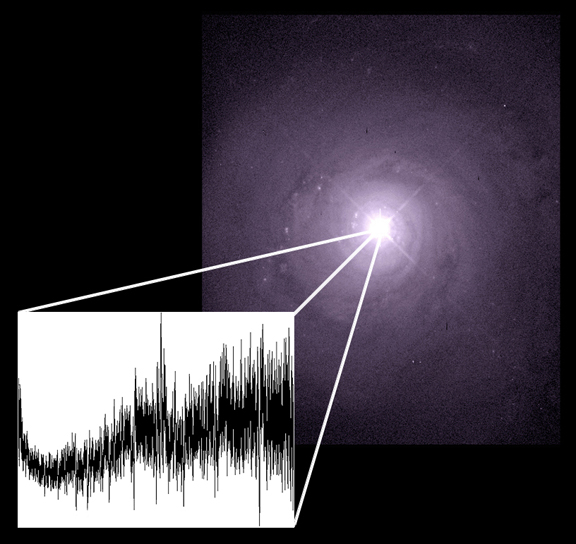

Hubble Image of NGC 5548, with Chandra X-ray Spectrum of Central Region
(Credit: Optical: NASA/HST; X-ray: NASA/SRON/CXC/SAO)


Related Images
NGC 1068
NGC 1068
(09 Jul 03)
NGC 4151
NGC 4151
(05 Jun 00)
NGC 5548:
Chandra Reads the Cosmic Bar Code of Gas Around a Giant Black Hole


NGC 5548
Credit: NASA/SRON

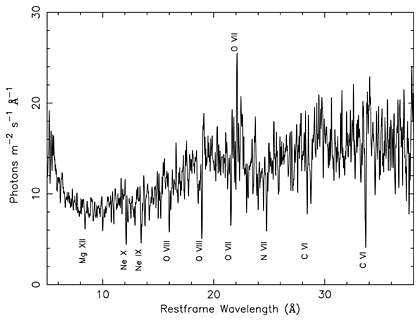

This figure is the X-ray spectrum of the central region of the galaxy, NGC 5548. The spectrum shows the number of X-rays present at each energy or wavelength, and amounts to a cosmic bar code. It allows scientists to take an inventory of the gas around the giant black hole in the center of the galaxy. The deep valleys in the spectrum are produced when a blanket of warm (few million degree) gas absorbs X-rays of specific energies from hotter gas close to the central black hole.

Absorption lines, or valleys, due to the elements carbon, nitrogen, oxygen, neon and magnesium can be seen in the figure. A peak in the spectrum due to emission from oxygen is also identified. The Roman numerals refer to how many electrons have been stripped from the atoms. e.g. OVIII is an ion that has lost 7 electrons from its atomic shell, NeX has lost 9 electrons, etc. Detailed analysis shows that absorption lines from elements silicon, sodium, and iron are also present.

The exact position of the lines relative to laboratory standards shows that the lines are shifted systematically to shorter wavelengths by a fraction of a percent. This shift is due to the gas moving away from the source (Doppler effect). It indicates that the blanket of absorbing gas is flowing away from the black hole at about a million kilometers per hour (600,000 miles per hour), probably because of the enormous amount of energy radiated by the extremely hot gas very near the black hole.

Chandra X-ray Observatory Low Energy Transmission Grating (LETG)/High Resolution Camera Image.

Fast Facts for NGC 5548:
Credit  NASA/SRON
Scale  Image is across.
Category  Quasars & Active Galaxies
Coordinates (J2000)  RA 14h 17m 59.50s | Dec +25° 08' 13"
Constellation  Boötes
Observation Dates  December 11, 1999
Observation Time  24 hours
Obs. IDs  330
Instrument  LETG
Release Date  February 17, 2000
