G292.0+1.8: Supernova Explosions Stay In Shape

  • A new study of supernova remnants allowed scientists to categorize the explosion that created them based on their shape

  • Supernovas that come from thermonuclear explosion on white dwarfs (known as Type Ia) produce very symmetric remnants

  • Another type, created when a very massive star collapses, results in more asymmetrically shaped remnants

These two supernova remnants are part of a new study from NASA's Chandra X-ray Observatory that shows how the shape of the remnant is connected to the way the progenitor star exploded. In this study, a team of researchers examined the shapes of 17 supernova remnants in both the Milky Way galaxy and a neighbor galaxy, the Large Magellanic Cloud.

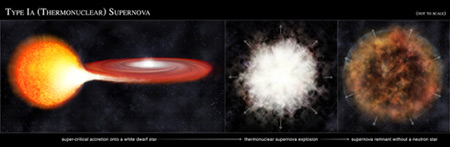

The results revealed that one category of supernova explosion, known as "Type Ia," generated a very symmetric, circular remnant. This type of supernova is thought to be caused by a thermonuclear explosion of a white dwarf, and is often used by astronomers as a "standard candle" for measuring cosmic distances. The image in the right panel, the so-called Kepler supernova remnant, represents this type of supernova.

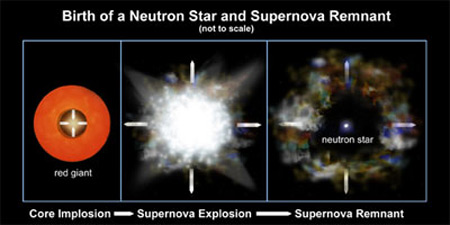

On the other hand, remnants tied to the "core collapse" family of supernova explosions were distinctly more asymmetric, which is seen in the morphology of the G292.0+1.8 remnant (left). The research team measured asymmetry in two ways: how spherical or elliptical the supernova remnant was and how much one side of the remnant mirrors its opposite side. In G292, the asymmetry is subtle but can be seen in elongated features defined by the brightest emission (colored white).

Out of the 17 supernova remnants sampled, ten were independently classified as the core-collapse variety, while the remaining seven of them were classified as Type Ia. One of these, a remnant known as SNR 0548-70.4, was a bit of an "oddball". This one was considered a Type Ia based on its chemical abundances, but has the asymmetry of a core-collapse remnant.

Fast Facts for G292.0+1.8:
Credit  NASA/CXC/UCSC/L. Lopez et al.
Release Date  December 17, 2009
Scale  11.5 arcmin across.
Category  Supernovas & Supernova Remnants
Coordinates (J2000)  RA 11h 24m 36.00s | Dec -59° 16' 00.00"
Constellation  Centaurus
Observation Date  6 observations between September - October 2006
Observation Time  144 hours
Obs. ID  6677-6680, 8221, and 8447
Instrument  ACIS
References Lopez, L. et al, 2009 706 L106-L109; Park, S. et al, 2007, ApJ, 670 L121-L124
Color Code  Energy: Red (low energy); Orange (medium-low energy); Green (medium energy); Blue (high energy)
Distance Estimate  About 20,000 light years
Fast Facts for Kepler's Supernova Remnant:
Credit  NASA/CXC/UCSC/L. Lopez et al.
Release Date  December 17, 2009
Scale  5 arcmin across.
Category  Supernovas & Supernova Remnants
Coordinates (J2000)  RA 17h 30m 40.80s | Dec -21° 29' 11.00"
Constellation  Ophiuchus
Observation Date  6 observations between April - August 2006
Observation Time  208 hours
Obs. ID  6714-18, 7366
Instrument  ACIS
Also Known As SN 1604, G004.5+06.8, V 843 Ophiuchi
References Lopez, L. et al, 2009 706 L106-L109; Park, S. et al, 2007, ApJ, 670 L121-L124
Color Code  Energy: Red (low energy);Yellow/Green (medium energy); Blue (high energy)
Distance Estimate  About 13,000 light years
