More Images of Spinning Black Holes Survey
1
Click for large jpg
(Close-Up)
Jpeg, Tif, PS
Click for large jpg
(Fuel, Unlabeled)
Jpeg, Tif, PS
Click for large jpg
(Fuel, Labeled)
Jpeg, Tif, PS
Click for large jpg
(Cavities)
Jpeg, Tif, PS
Illustration of Black Hole Engine
The first artist's illustration shows a close-up view of a supermassive black hole in a galaxy's center. Gas becomes hotter as it approaches the black hole, turning from red to yellow to white. Most of the gas is swallowed by the black hole, but some is launched in jets away from the black hole at almost the speed of light. The next illustration shows a larger area where gas is first attracted to the black hole, a region about a million times larger than the black hole's event horizon. The final illustration shows enormous cavities -- a hundred times larger -- that have been created in the galaxy's hot gas by jets from the black hole.
(Credit: NASA/CXC/M.Weiss)

2
Chandra X-ray Images of NGC 4374, NGC 4472, NGC 4552 & NGC 5846
Results from NASA's Chandra X-ray Observatory, combined with new theoretical calculations, provide one of the best pieces of evidence yet that many supermassive black holes are spinning extremely rapidly. The images above show 4 out of the 9 large galaxies included in the Chandra study, each containing a supermassive black hole in its center. These images show pairs of huge bubbles, or cavities, in the hot gaseous atmospheres of the galaxies, created in each case by jets produced by a central supermassive black hole. Studying these cavities allows the power output of the jets to be calculated. This sets constraints on the spin of the black holes when combined with theoretical models.
1 Click for large jpg

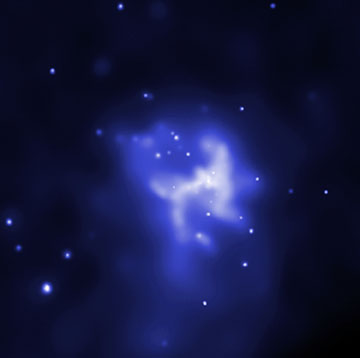

Fast Facts for NGC 4374:
Credit  NASA/CXC/UFRGS/R.Nemmen et al.
Scale  Image is 4.4 arcmin across
Coordinates (J2000)  RA 12h 25m 03.60s | Dec +12 53' 14.10
Constellation  Virgo
Observation Date  2000-05-19
Observation Time  8 hours
Obs. ID  803
Color Code  Intensity
Instrument  ACIS
Distance Estimate  About 55 million light years
Black Hole Mass  0.6 billion solar masses

2 Click for large jpg

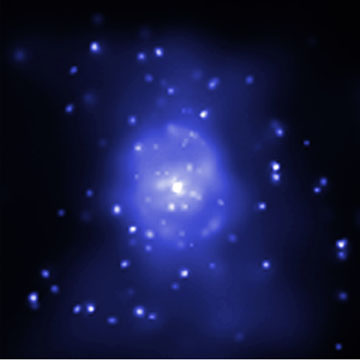

Fast Facts for NGC 4552:
Credit  NASA/CXC/UFRGS/R.Nemmen et al.
Scale  Image is 1.5 arcmin across
Coordinates (J2000)  RA 12h 35m 39.80s | Dec +12 33' 23.00
Constellation  Virgo
Observation Date  2001-04-22
Observation Time  15 hours
Obs. ID  2072
Color Code  Intensity
Instrument  ACIS
Distance Estimate  About 55 million light years
Black Hole Mass  0.4 billion solar masses

3 Click for large jpg

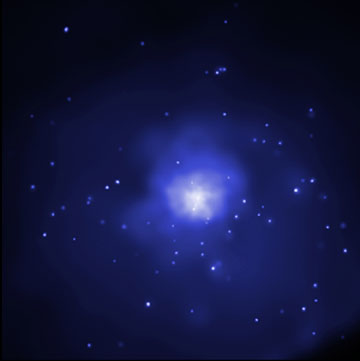

Fast Facts for NGC 4472:
Credit  NASA/CXC/UFRGS/R.Nemmen et al.
Scale  Image is 4.0 arcmin across
Coordinates (J2000)  RA 12h 29m 46.90s | Dec +08 00' 13.00
Constellation  Virgo
Observation Date  2000-06-12
Observation Time  6 hours
Obs. ID  321
Color Code  Intensity
Instrument  ACIS
Distance Estimate  About 55 million light years
Black Hole Mass  0.7 billion solar masses

4 Click for large jpg

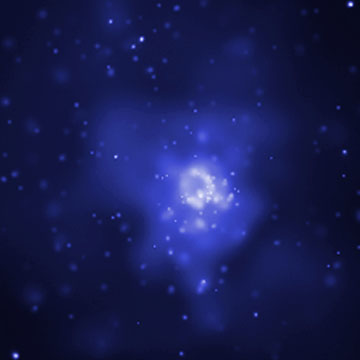

Fast Facts for NGC 5846:
Credit  NASA/CXC/UFRGS/R.Nemmen et al.
Scale  Image is 2.6 arcmin across
Coordinates (J2000)  RA 15h 06m 29.40s | Dec +01 36' 25.00
Constellation  Virgo
Observation Date  2000-05-24
Observation Time  5 hours
Obs. ID  788
Color Code  Intensity
Instrument  ACIS
Distance Estimate  About 146 million light years
Black Hole Mass  0.4 billion solar masses



Return to Spinning Black Holes Survey (January 10, 2008)
