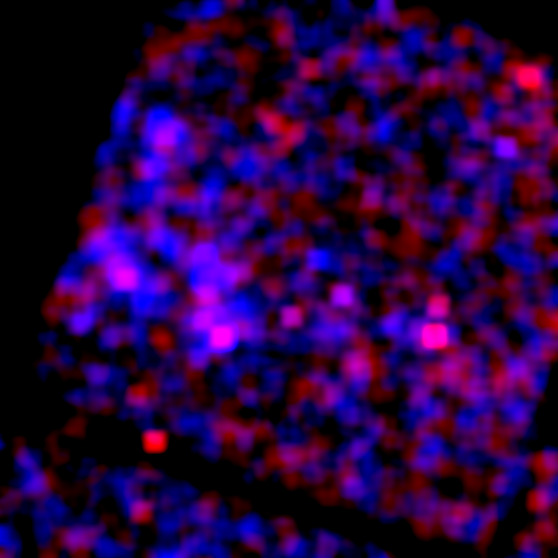

Smoothed X-ray Image
(Credit: NASA/GSFC/K.Ebisawa et al.)


Galactic Plane:
Astronomers Go Behind The Milky Way To Solve X-Ray Mystery


Galactic Plane
Credit: NASA/GSFC/K.Ebisawa et al.

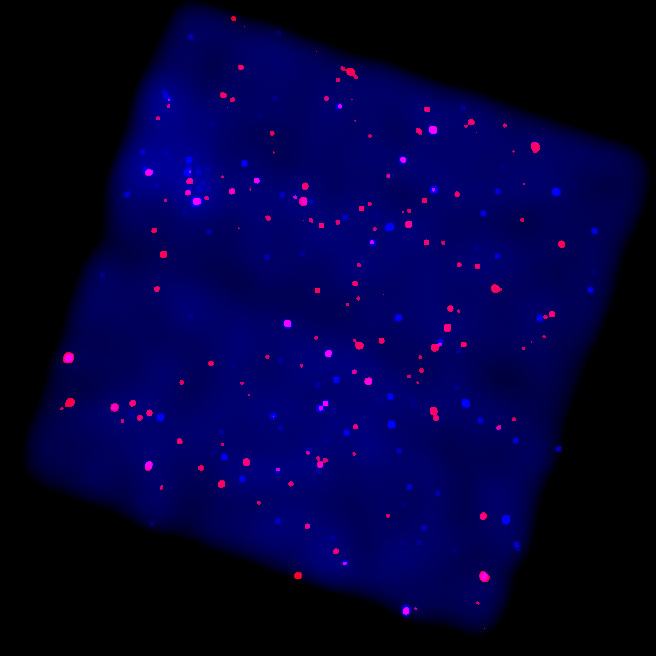

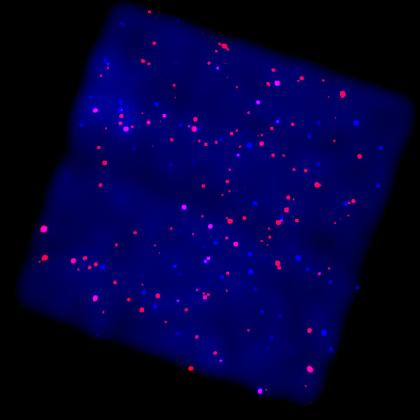

This Chandra image marks the deepest X-ray look at the "zone of avoidance" -- a region of space behind which no optical observation has ever been taken because thick clouds of dust and gas in the spiral arms of the Milky Way block visible radiation. X-rays, along with certain radio and infrared wavelengths, can penetrate this barrier, and Chandra provided the best look yet at what X-rays reveal. The diffuse blue emission is due to hot (ten million degree Celsius) gas concentrated along the plane of the Galaxy.

Most of the pink and red objects sources in this image are believed to be active stars in our Milky Way galaxy. The blue objects, referred to as "hard" sources because they emit more energetic X-rays, are considered to be distant galaxies. Because astronomers were able to identify these objects as being well beyond the galactic plane, they were able to determine that the X-ray glow from the galactic plane comes not from individual sources, but from the hot diffuse gas.

Chandra observed this region of the galactic plane in the constellation Scutum on February 25-26, 2000, with its Advanced CCD Imaging Spectrometer instrument for a total exposure time of 90,000 seconds.

Fast Facts for Galactic Plane:
Credit  NASA/GSFC/K.Ebisawa et al.
Scale  Image is 22.5 arcmin across.
Category  Normal Galaxies & Starburst Galaxies, Milky Way Galaxy
Coordinates (J2000)  RA 18h 43m 57.80s | Dec -04 04' 45.90"
Constellation  Scutum
Observation Dates  February 25-26, 2000
Observation Time  27 hours
Obs. IDs  1523 and 949
Color Code  Intensity
Instrument  ACIS
References Ebisawa, K., Maeda, Y., Kaneda, H., Yamauchi, S., Origin of the hard X-ray Emission from the Galactic Plane Science 2001 0:10635291-1 (Science Express Reports)
Distance Estimate  26,000 light years
Release Date  August 09, 2001
