Telescope System: Mirror Fabrication

page 1 2 3 4
Click for large jpg

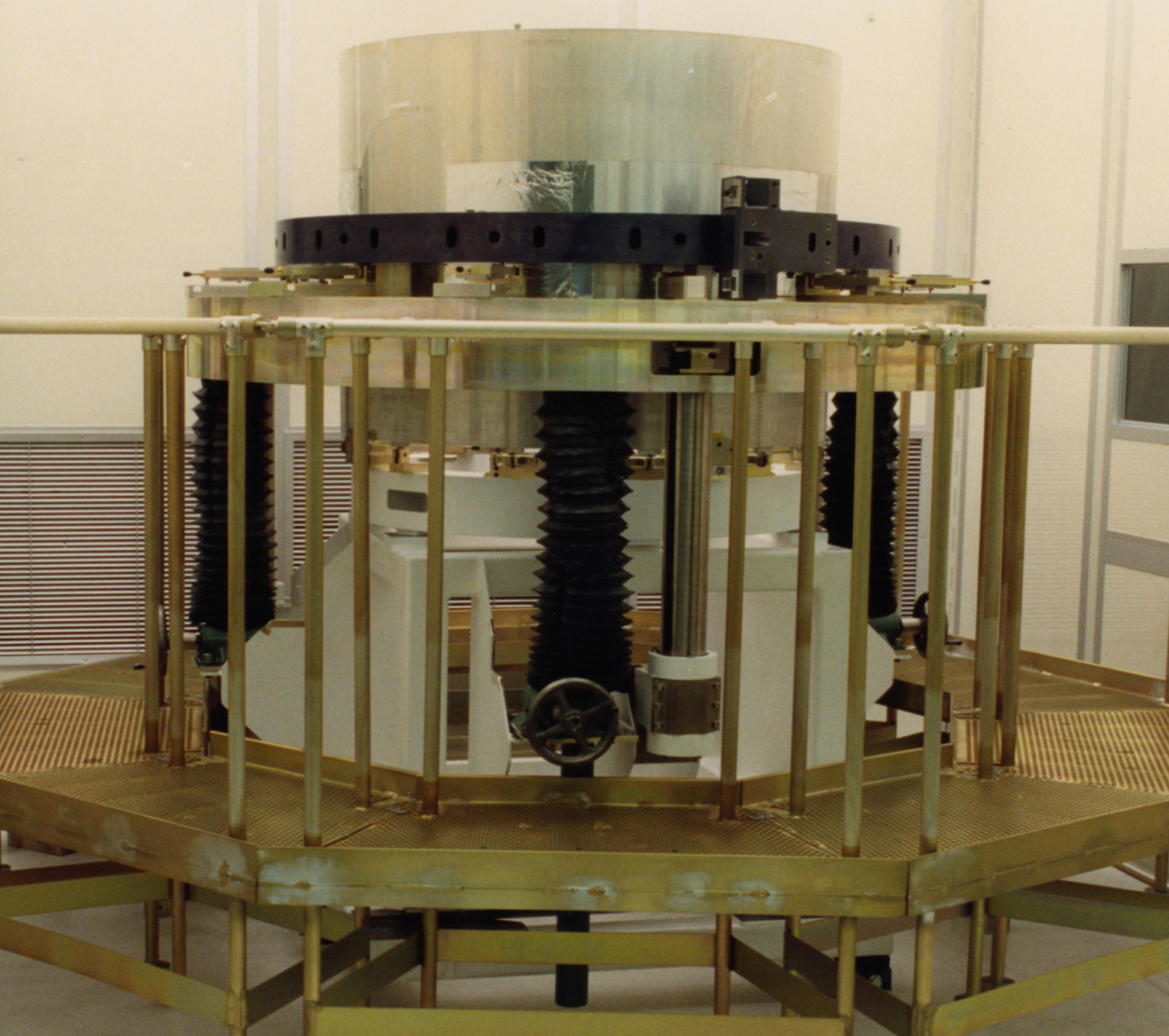

1. Verification Engineering Test Article (VETA)
VETA-I Internal Structure with actuators installed.
(photo: MSFC)

Download:
Click for large jpg

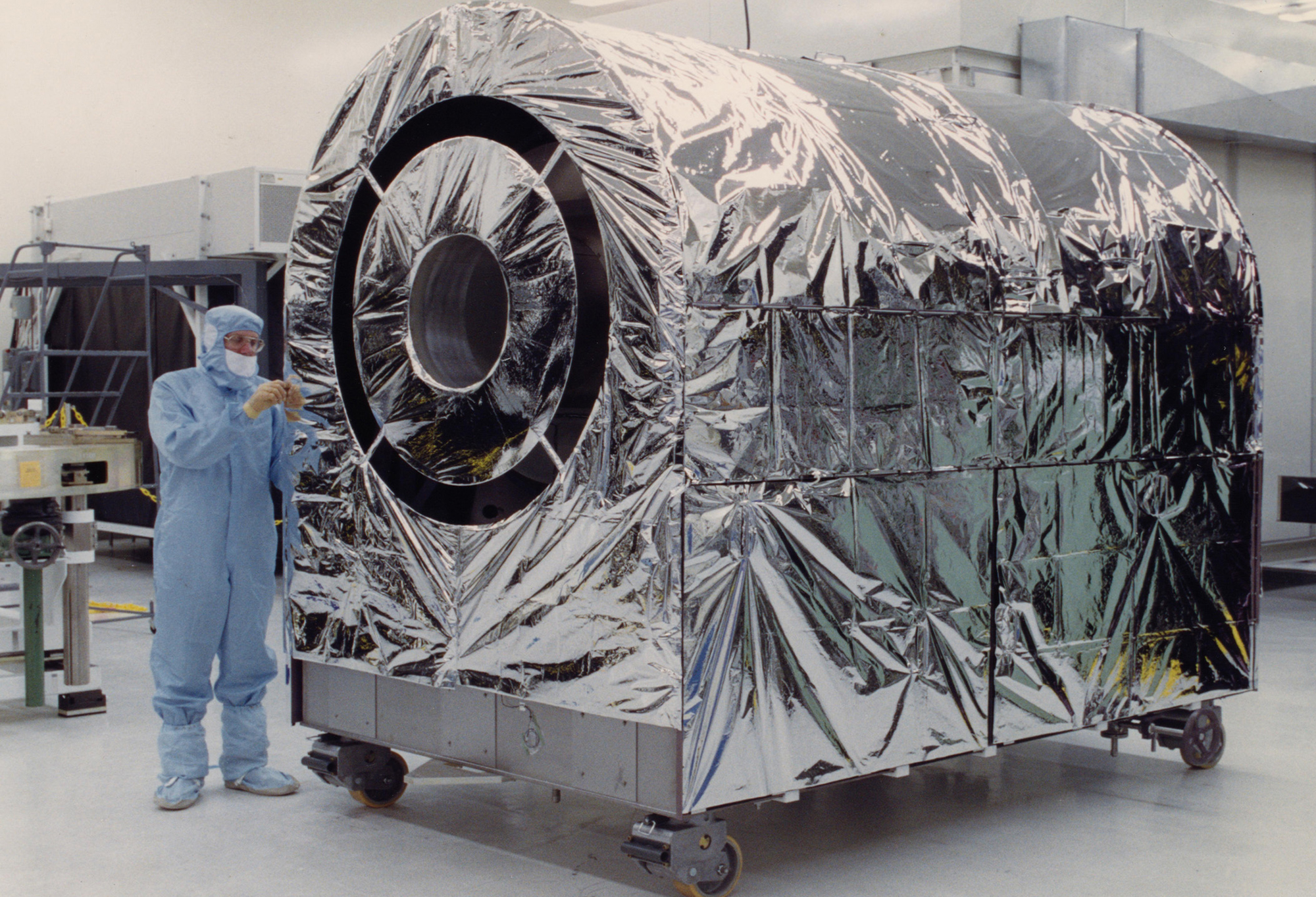

2. Verification Engineering Test Article (VETA)
VETA-I with Thermal Shroud (Mailbox) and blankets installed.
(Photo: ITT)

Download:
Click for large jpg

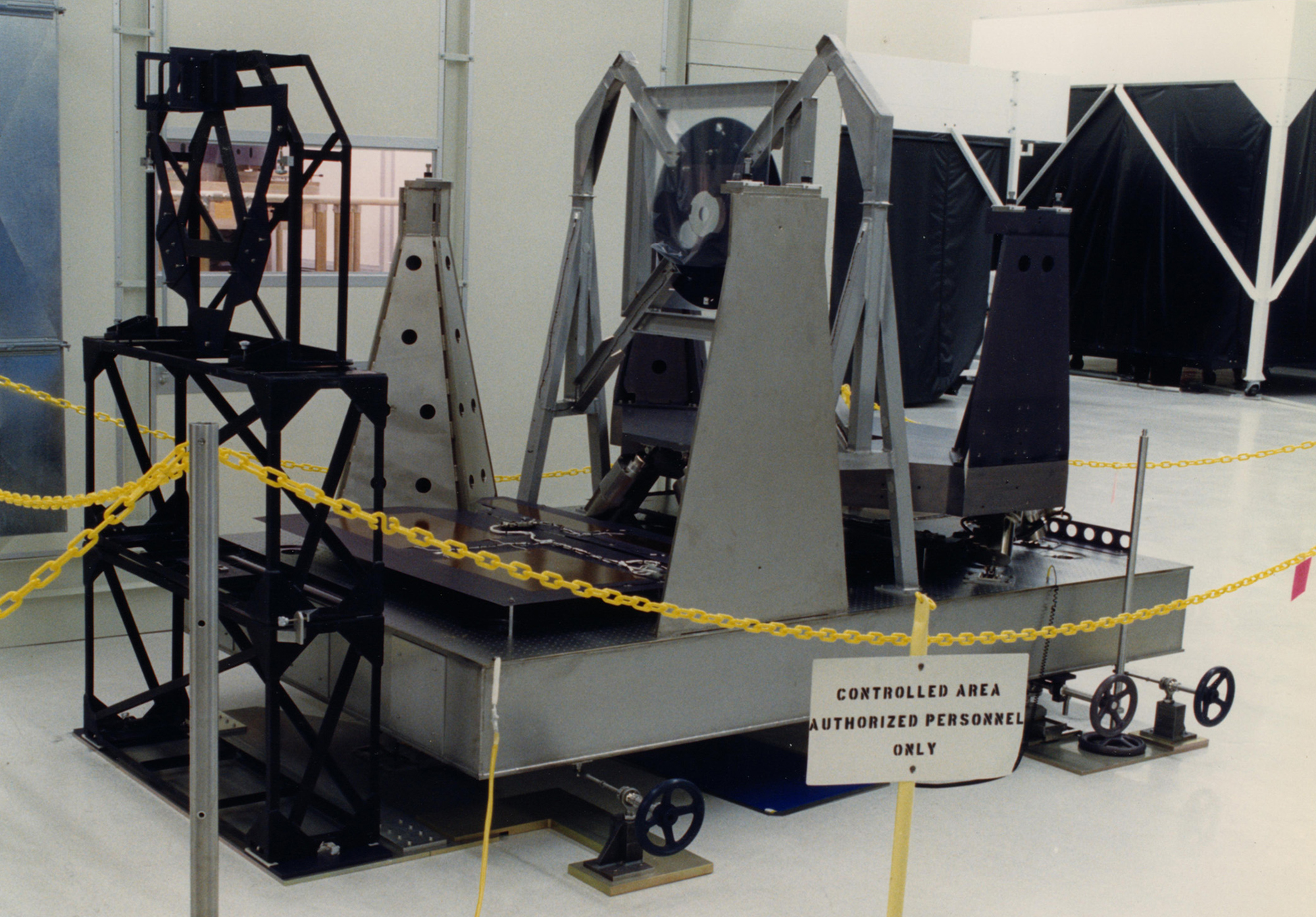

3. Verification Engineering Test Article (VETA)
Mirror Integration Station with Mirror Simulator.
(Photo: ITT)

Download:
Click for large jpg
4. Verification Engineering Test Article (VETA)
H1 Mirror during integration.
(Photo: ITT)

Download:
Click for large jpg

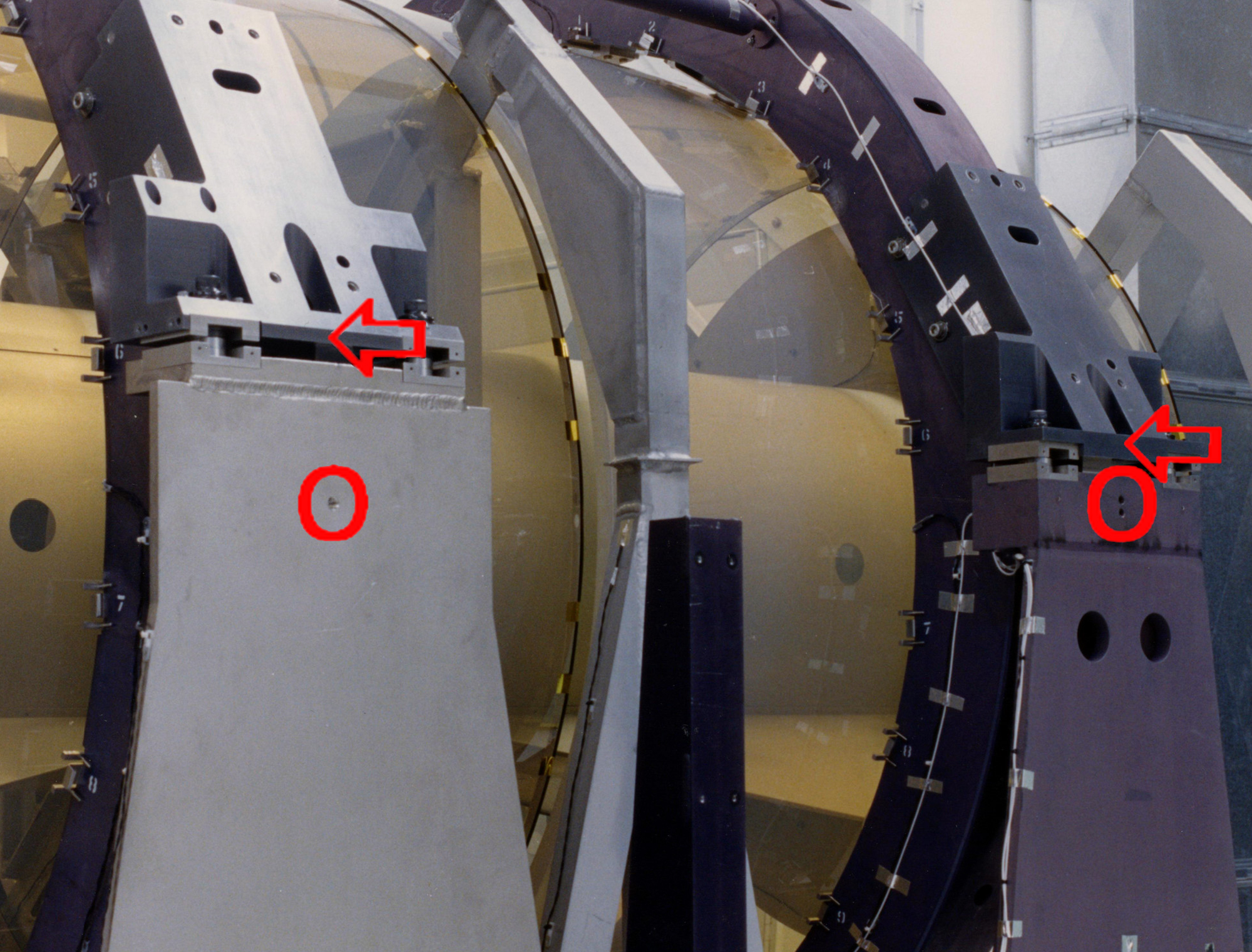

5. Verification Engineering Test Article (VETA)
Close-up of "Squeezer" locations on mirror interfaces.
(Photo: ITT)

Download:
Click for large jpg

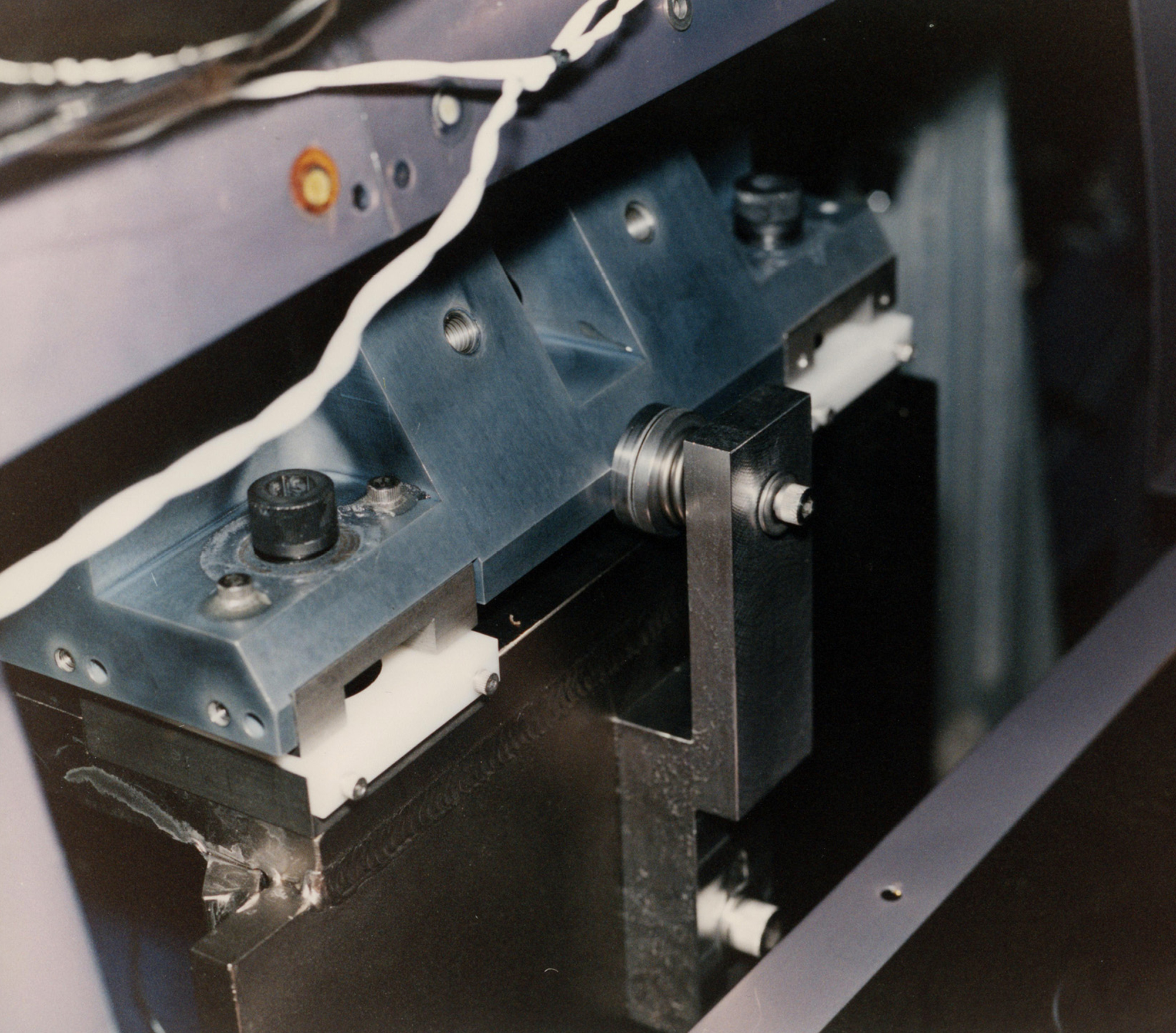

6. Verification Engineering Test Article (VETA)
Mirror "Squeezer" to eliminate unexpected astigmatism.
(Photo: ITT)

Download:
Click for large jpg

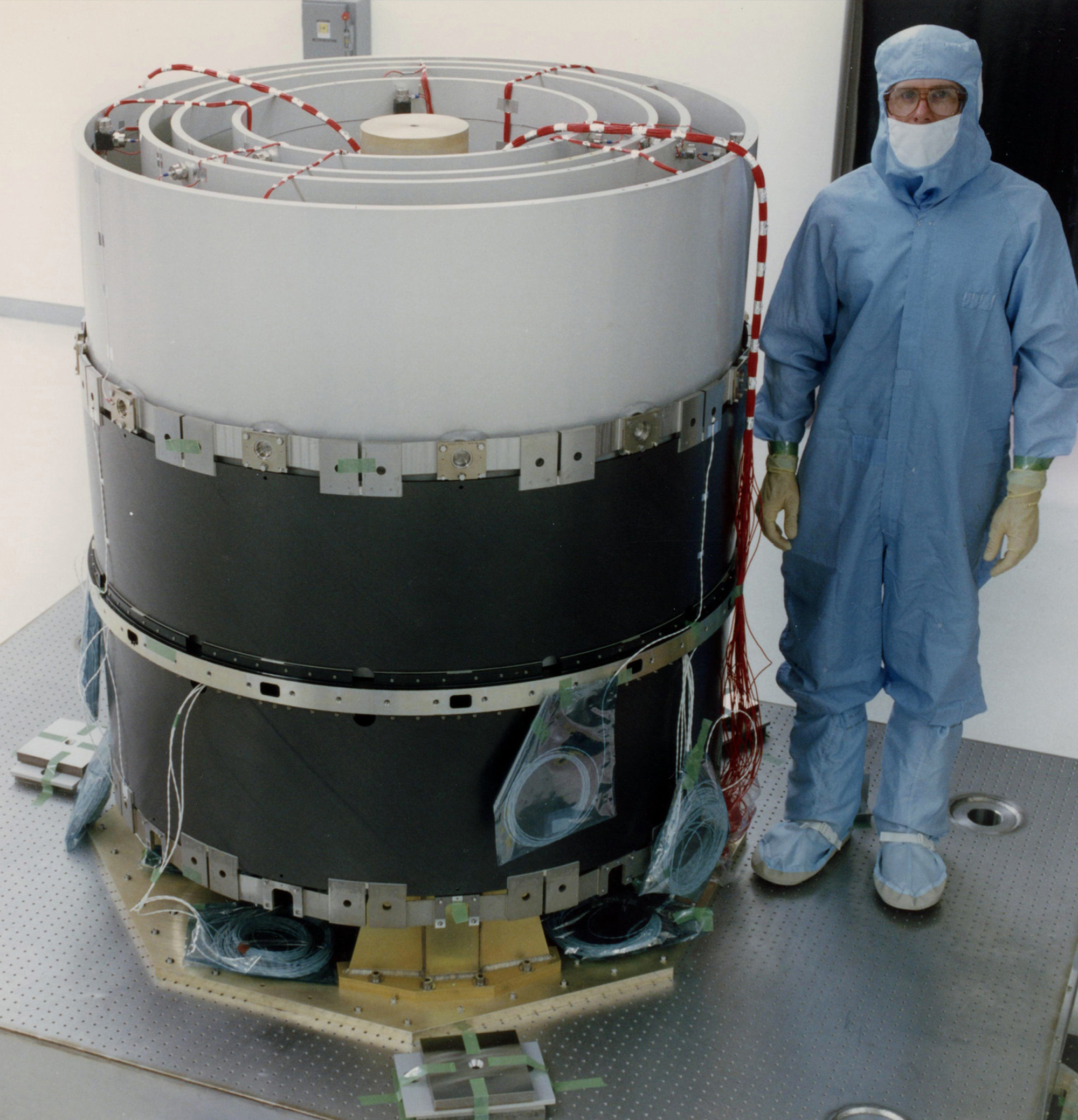

7. Verification Engineering Test Article (VETA)
VETA-I with both mirrors installed.
(Photo: ITT)

Download:
Click for large jpg

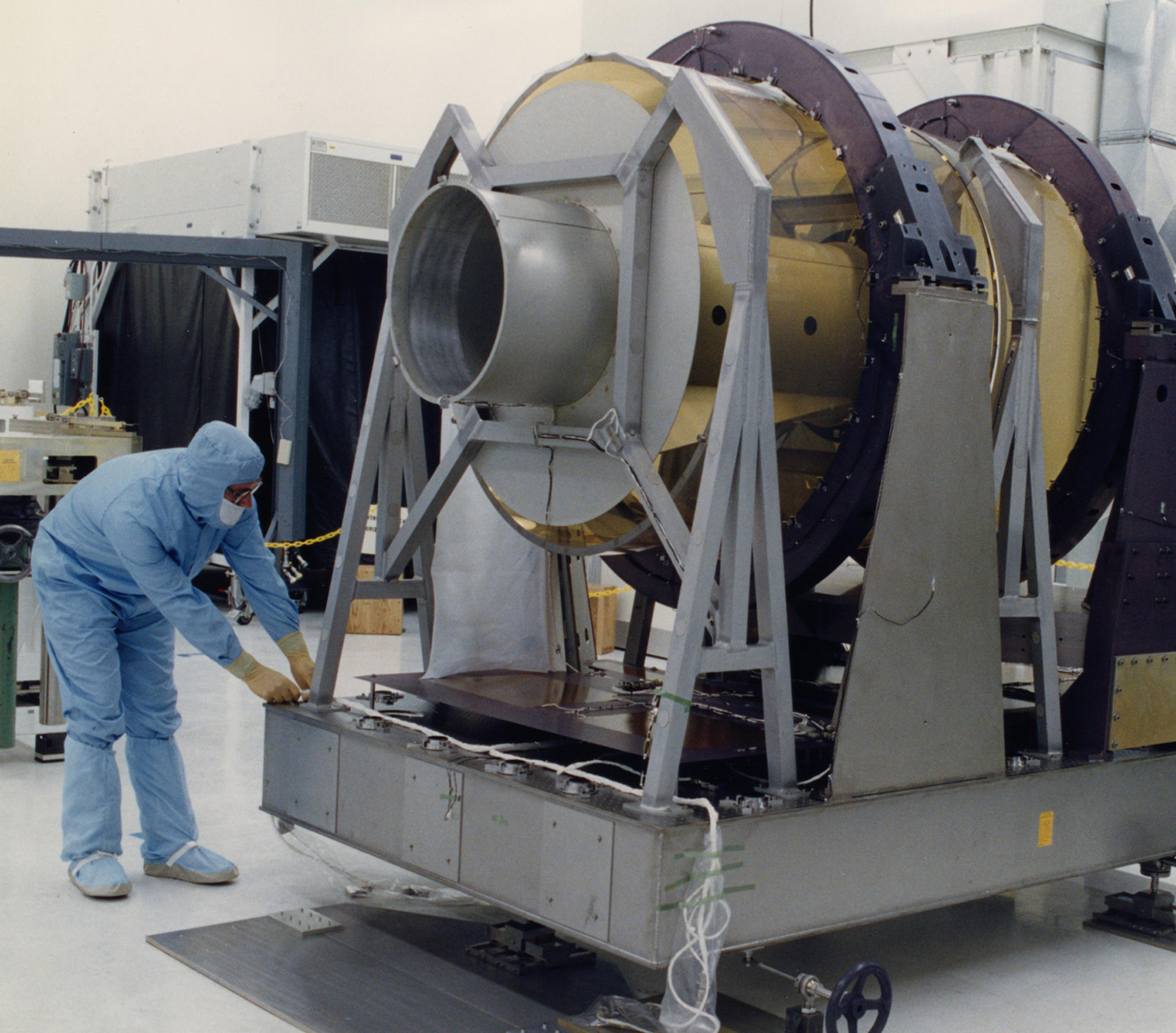

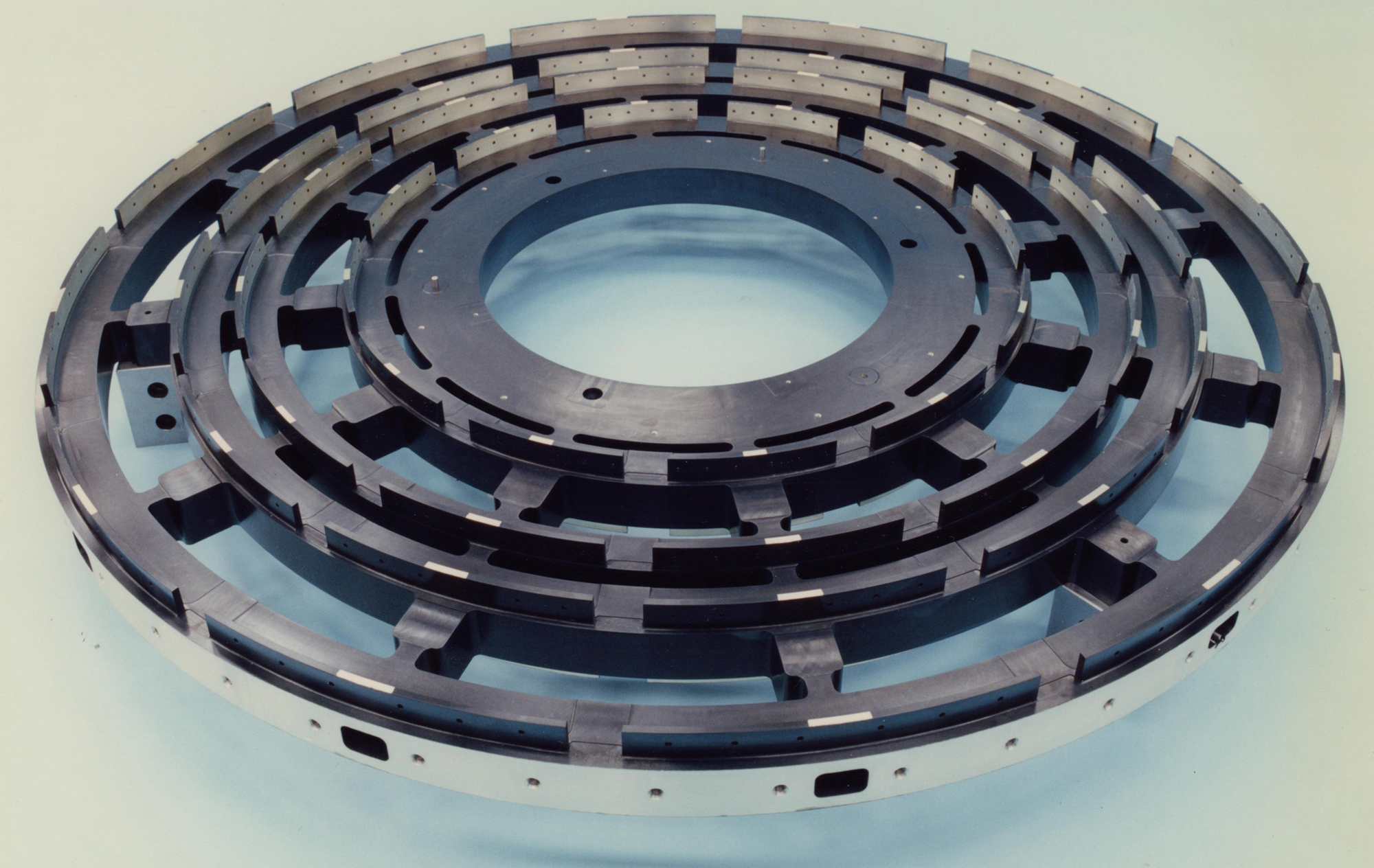

8. Verification Engineering Test Article (VETA)
VETA-II Center Aperture Plate replicated the HRMA CAP.
(Photo: ITT)

Download:
Click for large jpg
9. Verification Engineering Test Article (VETA)
Partially assemled VETA-II P-mirror simulators installed.
(Photo: ITT)

Download:
Click for large jpg

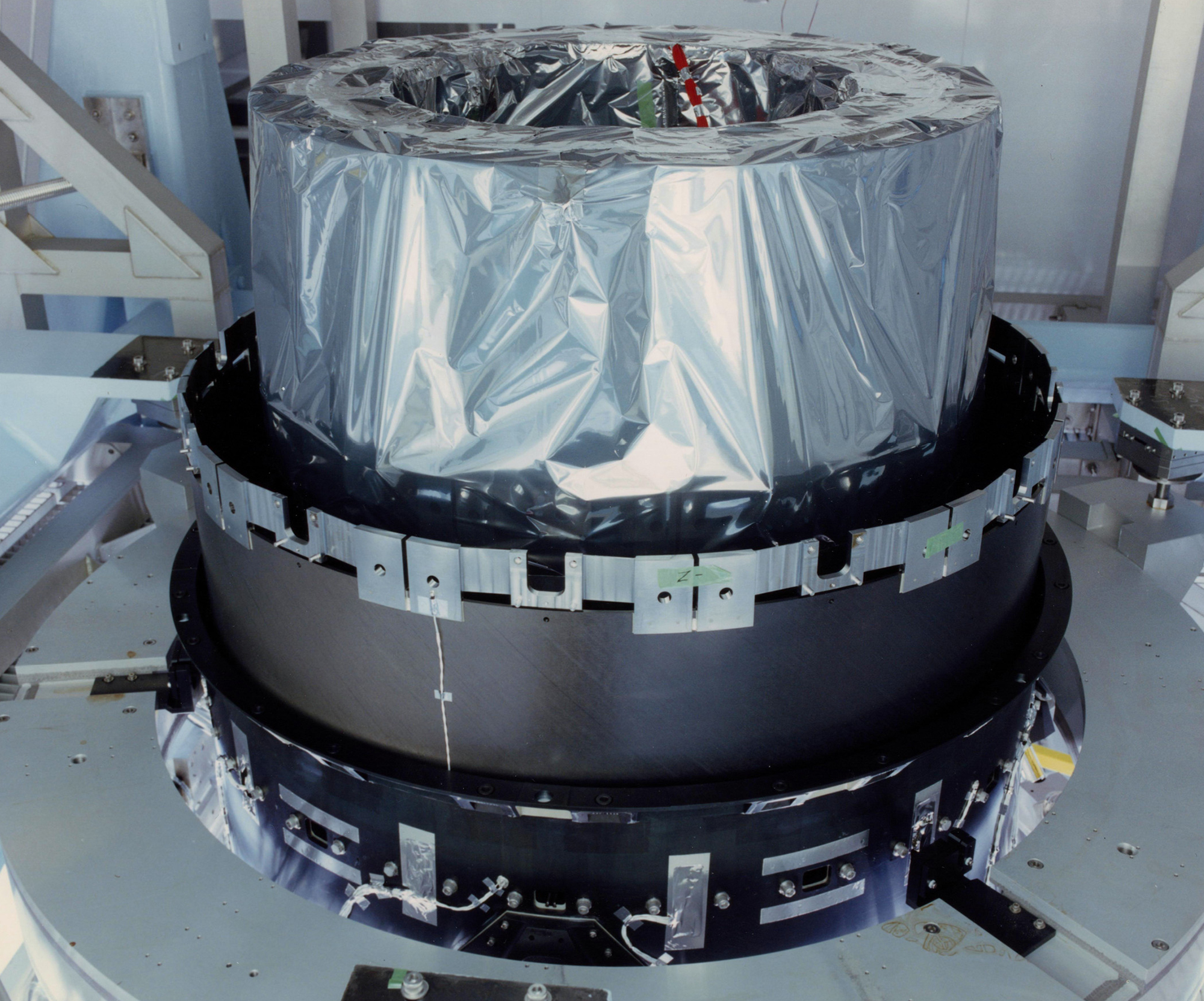

10. Verification Engineering Test Article (VETA)
VETA-II with P1/H1 aluminum mirror simulators removed. Ready for tower alignment demonstration.
(Photo: ITT)

Download:
Click for large jpg

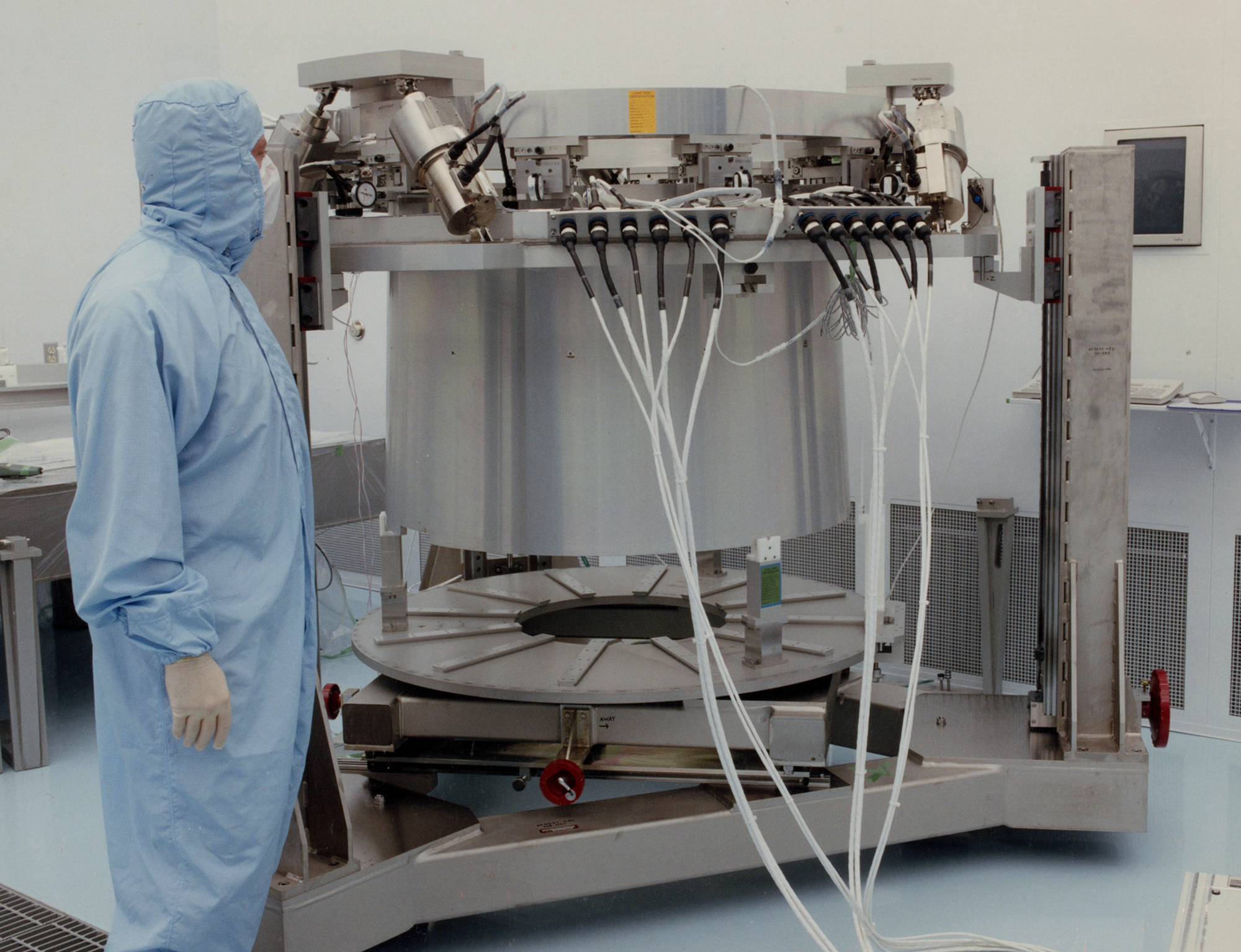

11. Verification Engineering Test Article (VETA)
H1 aluminum simulator integrated onto Mirror Alignment System (MAS).
(Photo: ITT)

Download:
Click for large jpg

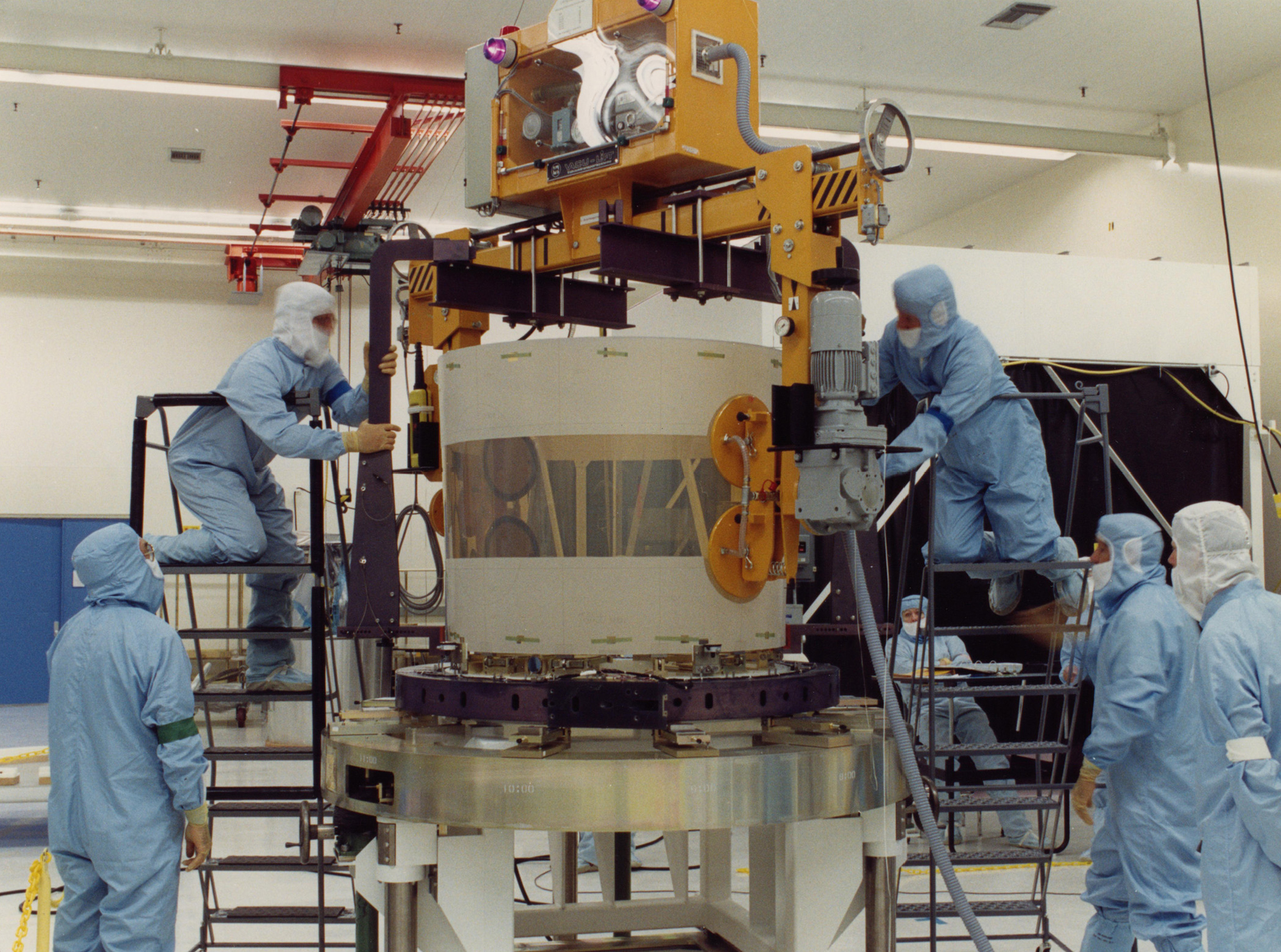

12. Verification Engineering Test Article (VETA)
H1 simulator moving to alignment tower.
(Photo: ITT)

Download:
Click for large jpg

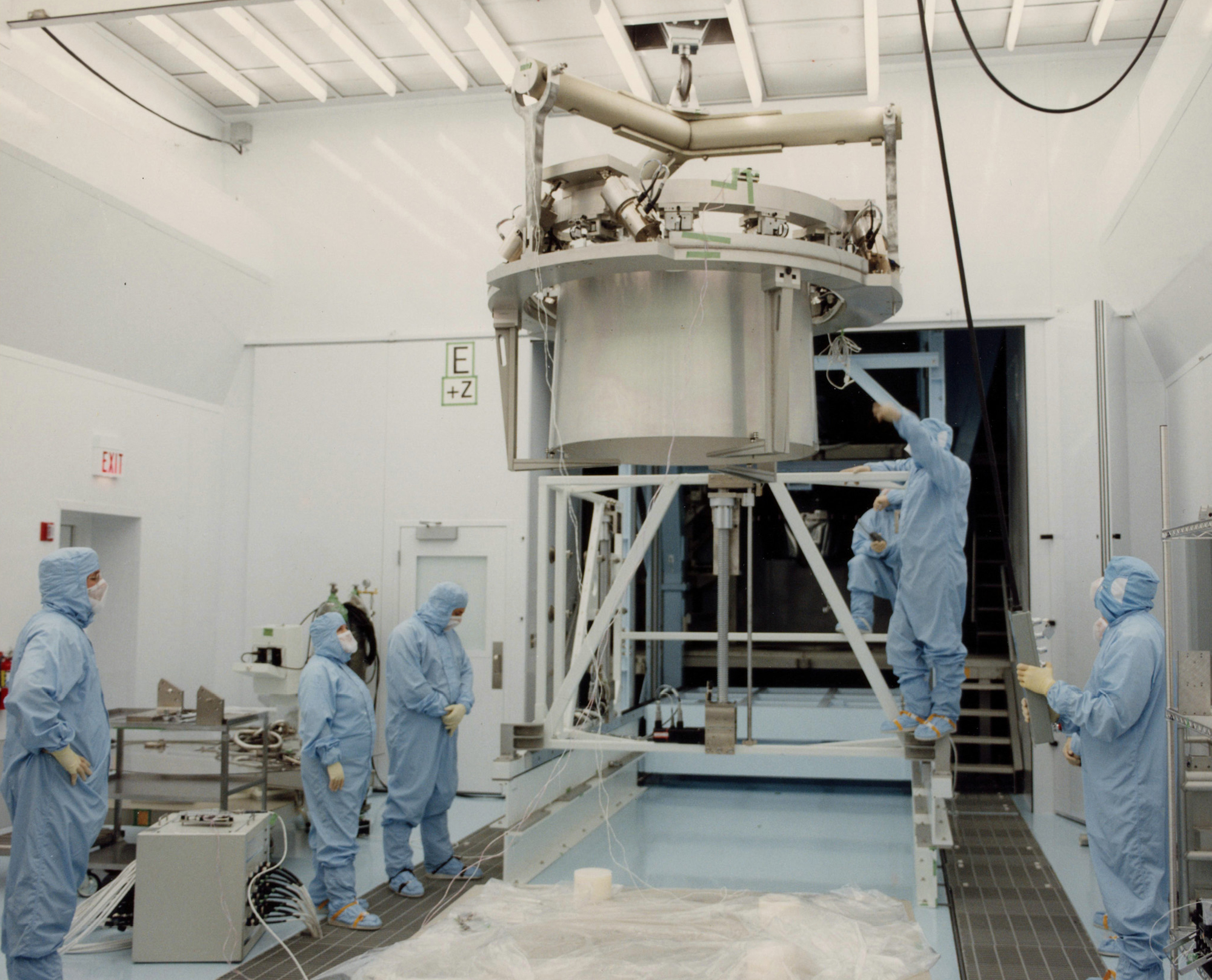

13. Verification Engineering Test Article (VETA)
Uncated P1 mirror moving into alignment tower on MAS.
(Photo: ITT)

Download:
Click for large jpg

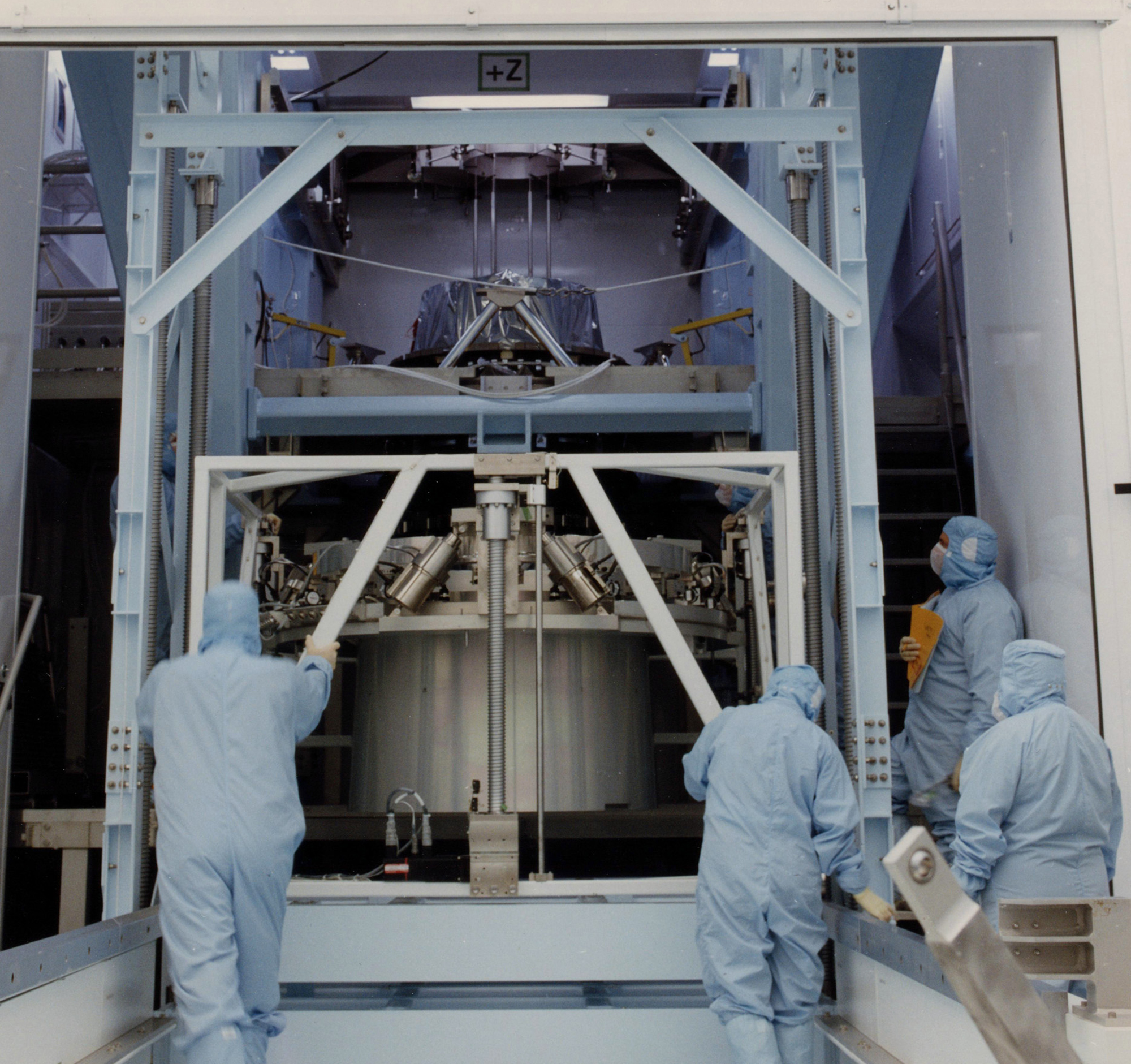

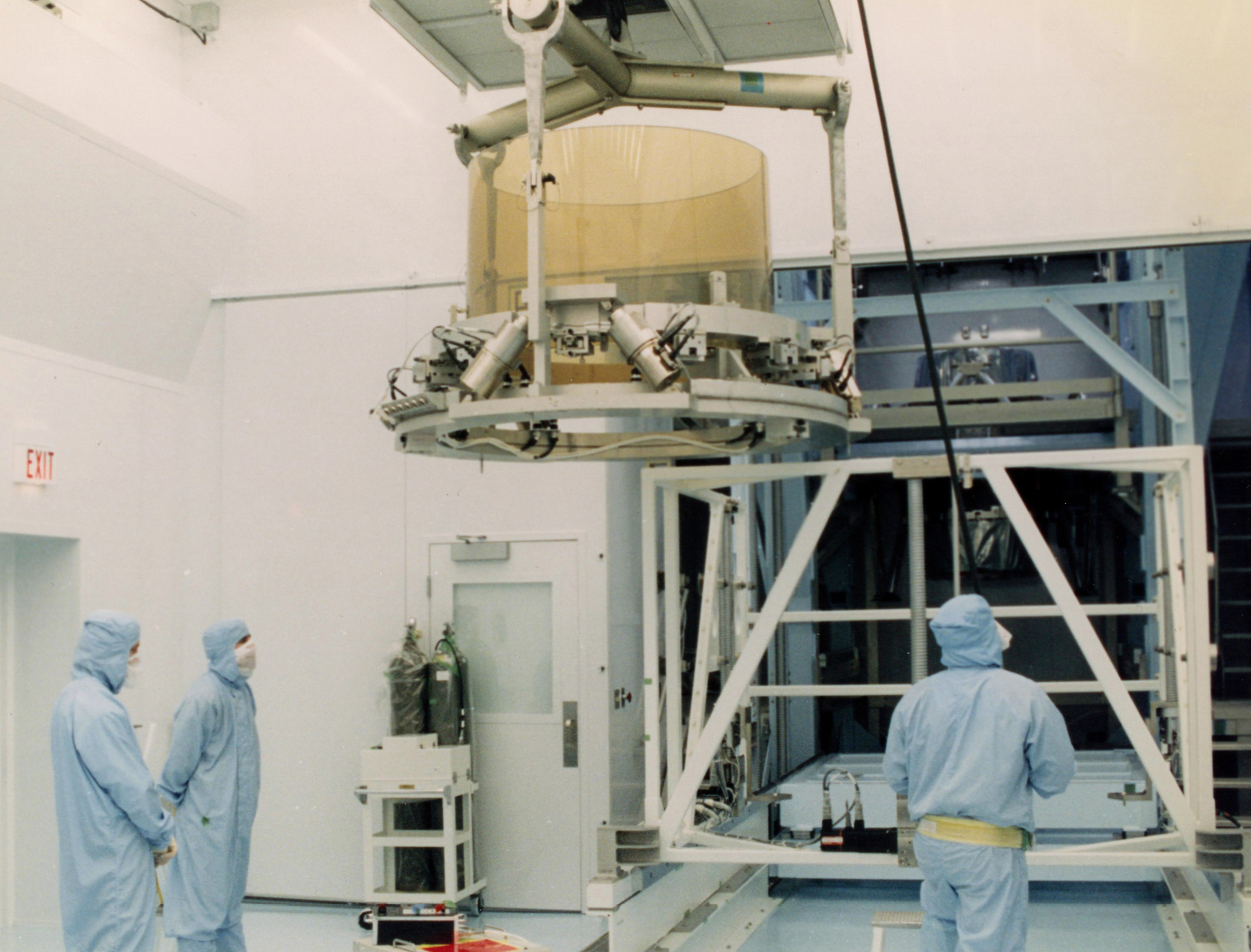

14. Verification Engineering Test Article (VETA)
Uncoated P1 mirror on parts carriage for installation onto VETA-II.
(Photo: ITT)

Download:
Click for large jpg

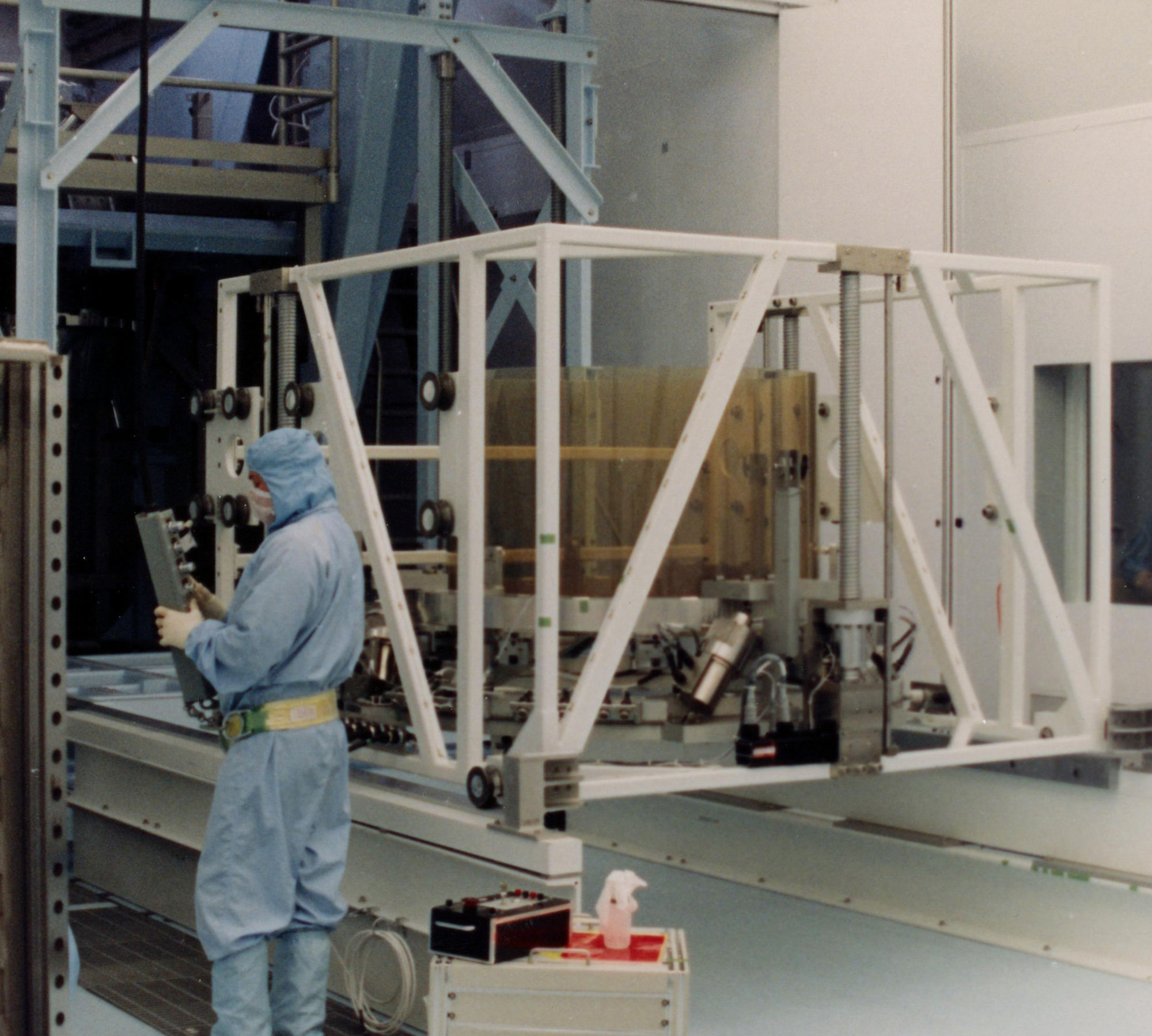

15. Verification Engineering Test Article (VETA)
H1 simulator moving into position for the VETA-II handling demonstration.
(Photo: ITT)

Download:
Click for large jpg

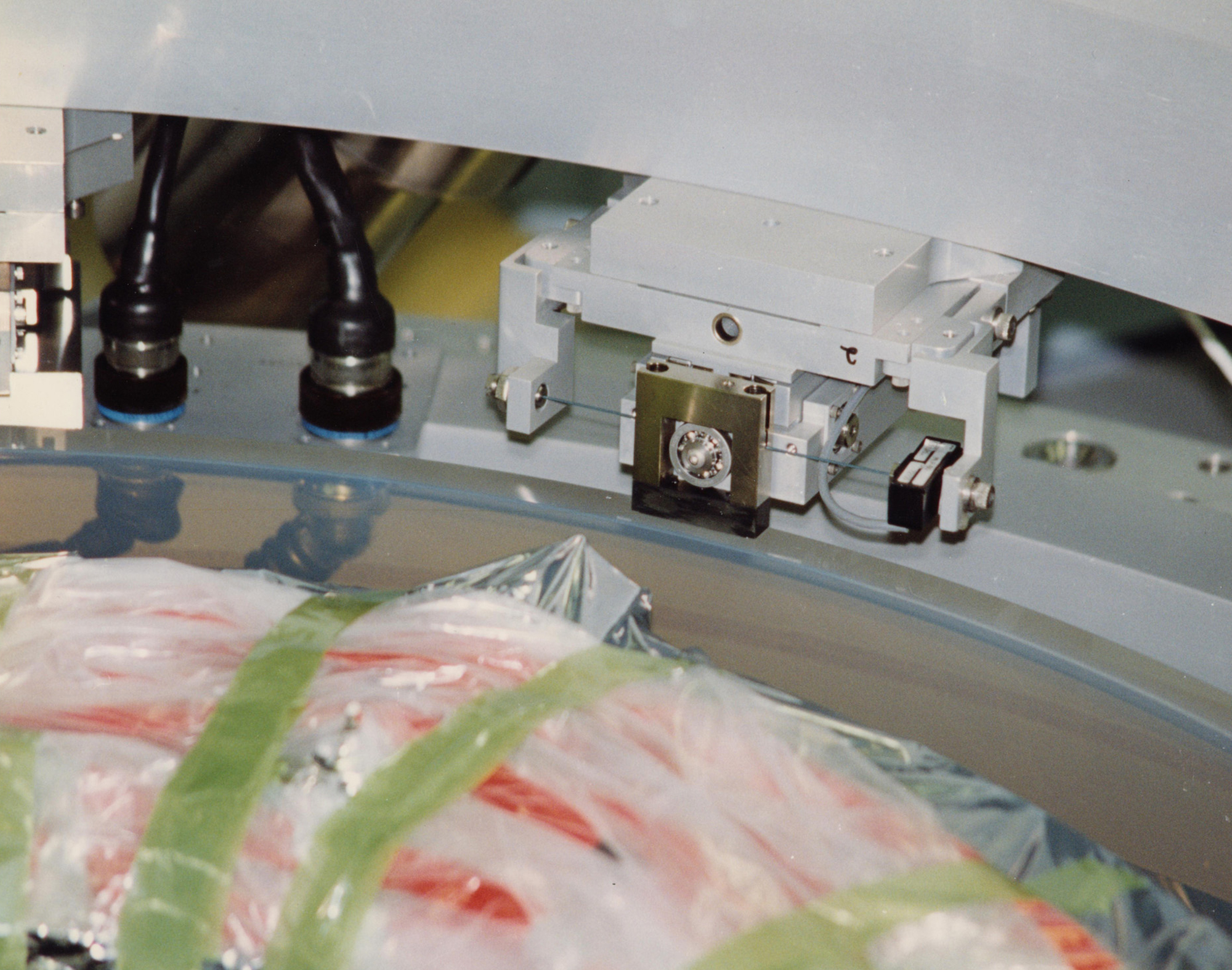

16. Verification Engineering Test Article (VETA)
Close-up of MAS offloader on H1 mirror.
(Photo: ITT)

Download:
